Dry Batch Ready Mix Concrete Batching Plant Machine Capacity 100 M³/H Fast dry mix plant

Product Categories
SHANDONG ENCKE IMP&EXP CO.LTD
Contact Now

Dry Batch Ready Mix Concrete Batching Plant Machine Capacity 100 M³/H Fast dry mix plant

  • 1
  • 2

Brand Name : ENCKE

Model Number : 100 m³/h

Certification : CE

Place of Origin : Mainland

MOQ : 1 set

Payment Terms : T/T, L/C, D/P, Western Union, MoneyGram

Delivery Time : 20-30 work days

Packaging Details : Stand Container

Capacity : 100 m³/h

Conveyor screw : Ø 273 mm

Water weighing system : Liter counter pulse emitter

Aggregate weighing hopper : Load cell 13 m³

Cement weighing system : Load cell3 t

Aggregate weighing system : 20 t

type : concrete batching equipment

name : compact concrete batching plant

Contact Now

Dry Batch Ready Mix Concrete Batching Plant Machine Capacity 100 M³/H Fast dry mix plant

Mobile concrete batching plant
Aggregate batching and transferring is automatic and precise;
Concrete mixing quality is observable, drum clockwise rotating for mixing, and anti-clockwise rotating for discharging;
The whole plant chassis can be moved easily, don't need to be separated and assembled;
This plant is designed to work without foundation, even cooperate working with horizontal cement silo;

General technical information:

Dry batching plant:

Minimal foundation works
Possibility of moving the plant from one site to another
Low maintenance costs
Pre-cabled and pre-assembled at the workshop
Speed of assembling in site
Easy and cheap transport

Ready mix concrete plant can be customized !

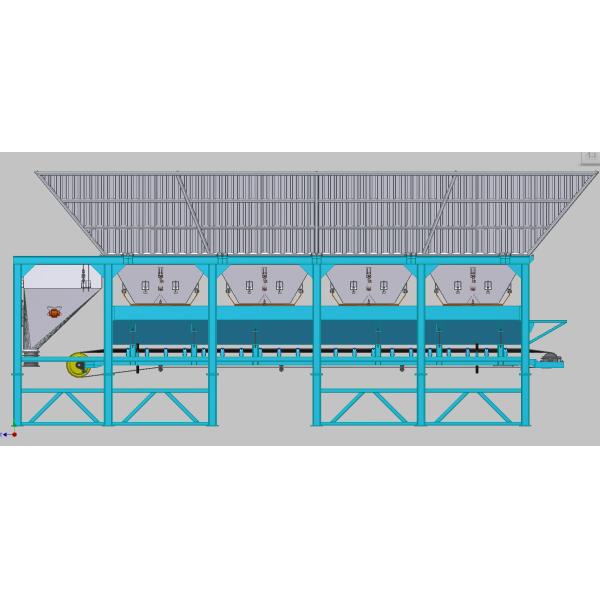

Detail show:

Dry Batch Ready Mix Concrete Batching Plant Machine Capacity 100 M³/H Fast dry mix plant

Technical Features:

Technical features METRIC UNITS UNITED STATES UNITS
Theoretical hourly output 100 m3/h 130 yd3/h
Aggregate storage 65-95 m3 85-124 yd3
Aggregate storage bins 4 n° 4 n°
Discharge gates/Pneumatic cylinders 8/8 n° 8/8 n°
Aggregate weighing hopper 13 m3 17 yd3
Aggregate weighing system 20000 kg 44,092 lb
Cement weighing hopper 3 m3 3.9 yd3
Cement weighing system 3000 kg 6,610 lb
Liter counter pulse emitter 2” 54m3/h
Extractor belt with sheet 800 mm 220 m3/h 287 yd3/h
Conveyor belt with sheet 800 mm 220 m3/h 287 yd3/h
Loading screw Ø 273 mm 80 ton/h 88 t/h
Air compressor 500 L 132 gal
Operating voltage 400 V 460 V
Operating frequency 50/60 Hz 50/60 Hz
Absorbed electrical power 55/41 HP/kW 55/41 HP/kW
Installed electrical power 75/56 HP/kW 75/56 HP/kW
